Filtration Assembly

Manifolds Vacuum Filtration with SUS funnel

Description：

Manifolds Vacuum Filtration

Brief Introduction

Manifolds Vacuum Filtration is used primarily in microbiological and analytical procedures that involve collecting a particulate (bacteria, precipitate, etc.) from a liquid suspension. Liquid poured into a funnel passed through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold. Applying vacuum reduces process time compared to gravity flow. Vacuum Filtration Holders and Manifolds are particular designed and produced for several samples filtrate at the same time. Because each filter holder have individual control valve, only one set vacuum pump can sustain the single or Multi-branch manifold filter operate together.

Characteristic

Each holder have individual control valve, agility for use、convenience in antisepsis、high efficiency.

Test three or six samples at the same time, high sensitivity, low false –positive, and easy to operation.

Operation range:

Widely used for chemistry analyze biochemical-pharmaceutical sanitation test environment test water quality analyze food staff, beverage and science research and so on.

Suitable Membrane:

The choosing of the membrane filter is the key to the best filtration. The nature of membrane filter must suit for different chemical performance of the filter medium. At present mostly are PVDF(organic)、synthetic fabric colophony membrane(aqueous)、and Nylon membrane(both aqueous and organic). Our company also provide various kinds of imported membrane filter, the aperture is usually 0.22、0.45、0.8μm, and the suitable diameter isφ47 or φ50.

Components:

1. All stainless steel funnel (300ml or 500ml) with O-ring

2. SS316L support screen (100μm)

3. Stainless steel holder ( SS316L)

4. Stainless Steel 316 valve

5. Clamp of aluminum alloy

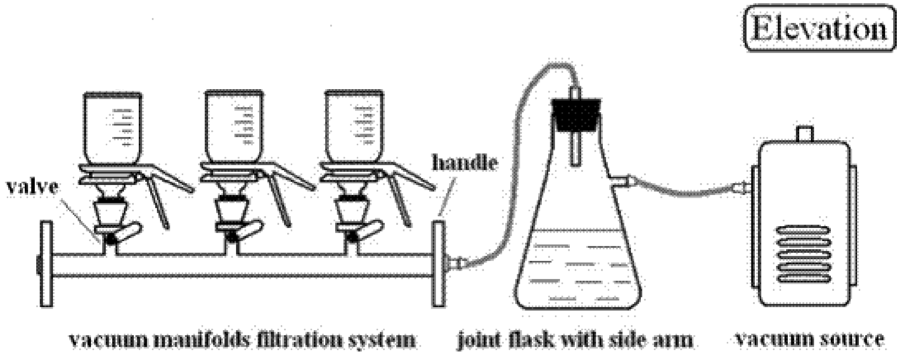

How to use it

Ordering Information

Item No.	Product Name	Model/Specification
RGFA01SS-1	Manifolds Vacuum Filtration	Single-branch, 100ml SUS316 Funnel
RGFA03SS-1	Manifolds Vacuum Filtration	3-branch , 100ml SUS316 Funnel
RGFA06SS-1	Manifolds Vacuum Filtration	6-branch, 100ml SUS316 Funnel
RGFA01SS-3	Manifolds Vacuum Filtration	Single-branch, 300ml SUS316 Funnel
RGFA03SS-3	Manifolds Vacuum Filtration	3-branch , 300ml SUS316 Funnel
RGFA06SS-3	Manifolds Vacuum Filtration	6-branch, 300ml SUS316 Funnel
RGFA01SS-5	Manifolds Vacuum Filtration	Single-branch, 500ml SUS316 Funnel
RGFA03SS-5	Manifolds Vacuum Filtration	3-branch , 500ml SUS316 Funnel
RGFA06SS-5	Manifolds Vacuum Filtration	6-branch, 500ml SUS316 Funnel
RGFA01SS-1-P	Manifolds Vacuum Filtration	Single-branch, 100ml SUS316 Funnel with receiving bottle 1L and vacuum pump LMP-85
RGFA03SS-1-P	Manifolds Vacuum Filtration	3-branch , 100ml SUS316 Funnel with receiving bottle 1L and vacuum pump LMP-85
RGFA06SS-1-P	Manifolds Vacuum Filtration	6-branch, 100ml SUS316 Funnel with receiving bottle 2L and vacuum pump LMP-95
RGFA01SS-3-P	Manifolds Vacuum Filtration	Single-branch, 300ml SUS316 Funnel with receiving bottle 1L and vacuum pump LMP-85
RGFA03SS-3-P	Manifolds Vacuum Filtration	3-branch , 300ml SUS316 Funnel with receiving bottle 1L and vacuum pump LMP-85
RGFA06SS-3-P	Manifolds Vacuum Filtration	6-branch, 300ml SUS316 Funnel with receiving bottle 2L and vacuum pump LMP-95
RGFA01SS-5-P	Manifolds Vacuum Filtration	Single-branch, 500ml SUS316 Funnel with receiving bottle 1L and vacuum pump LMP-85
RGFA03SS-5-P	Manifolds Vacuum Filtration	3-branch , 500ml SUS316 Funnel with receiving bottle 1L and vacuum pump LMP-85
RGFA06SS-5-P	Manifolds Vacuum Filtration	6-branch, 500ml SUS316 Funnel with receiving bottle 2L and vacuum pump LMP-95
